Built in 1965, LoGrasso Hall at SUNY Fredonia offers Health Care Services to over 5,500 students. This one story building houses three separate Centers including Counseling, Health and International Education.
The composite outer wall wythe and inner wythe connection had failed due to water entry, reducing the structural integrity of the wall. The new exterior design improved building performance while simultaneously creating an updated look for the campus facility.
AIA Central NY, Design Award Recipient 2013 Commercial/Industrial - Large Projects
RCI, Inc. Document Competition, 2nd Place Award Recipient 2013 - Large Projects
LoGrasso Hall - SUNY Fredonia
LoGrasso Hall - SUNY Fredonia
Custom mounting brackets were designed and fabricated to integrate exterior lighting and punched windows with the rain screen wall assembly.

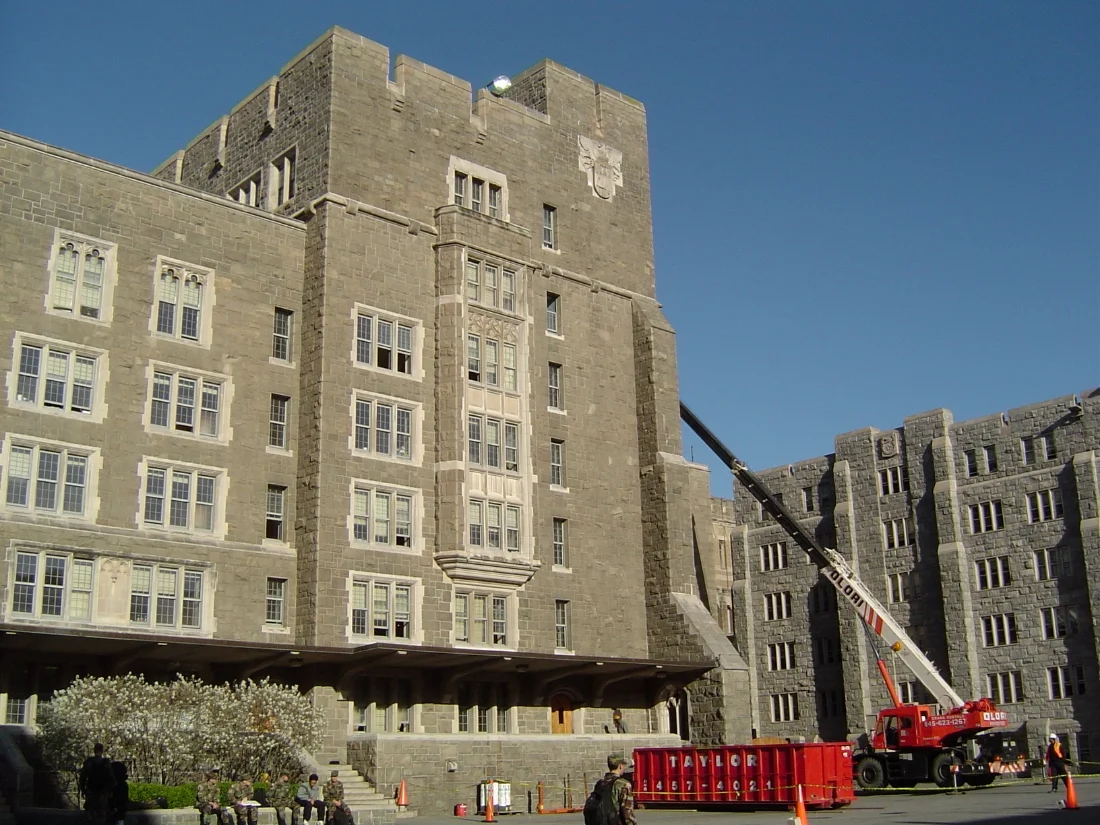

Grant & Scott Barracks - West Point Military Academy
Bell & Spina was retained by N.K. Bhandari, Architecture & Engineering P.C. to assist in the NR listed 1930’s barracks buildings renovation project. Complete removal and replacement of the existing roof system Repointing and/or flashing of stone parapets and facade, removal and repair of existing precast coping stones. Installation of new lead coated copper counterflashing and lintel flashing.
Bacon Hall, SUNY Brockport
Bacon Hall required a complete replacement of the existing slate roof and copper snow flashings.
Washington Arms Masonry Restoration - Syracuse University
Investigations of the condition of the existing parapet wall at Washington Arms, a five-story residence hall built in the 1920’s lead to the replacement of the entire parapet wall, as well as a general re-pointing of the masonry on the building.
RCI, Inc, Document Competition, 1st Place Award Recipient 2013, Small Projects.
RCI, Inc. Document Competition, 1st Place Award Recipient 2013, - Report Writing.

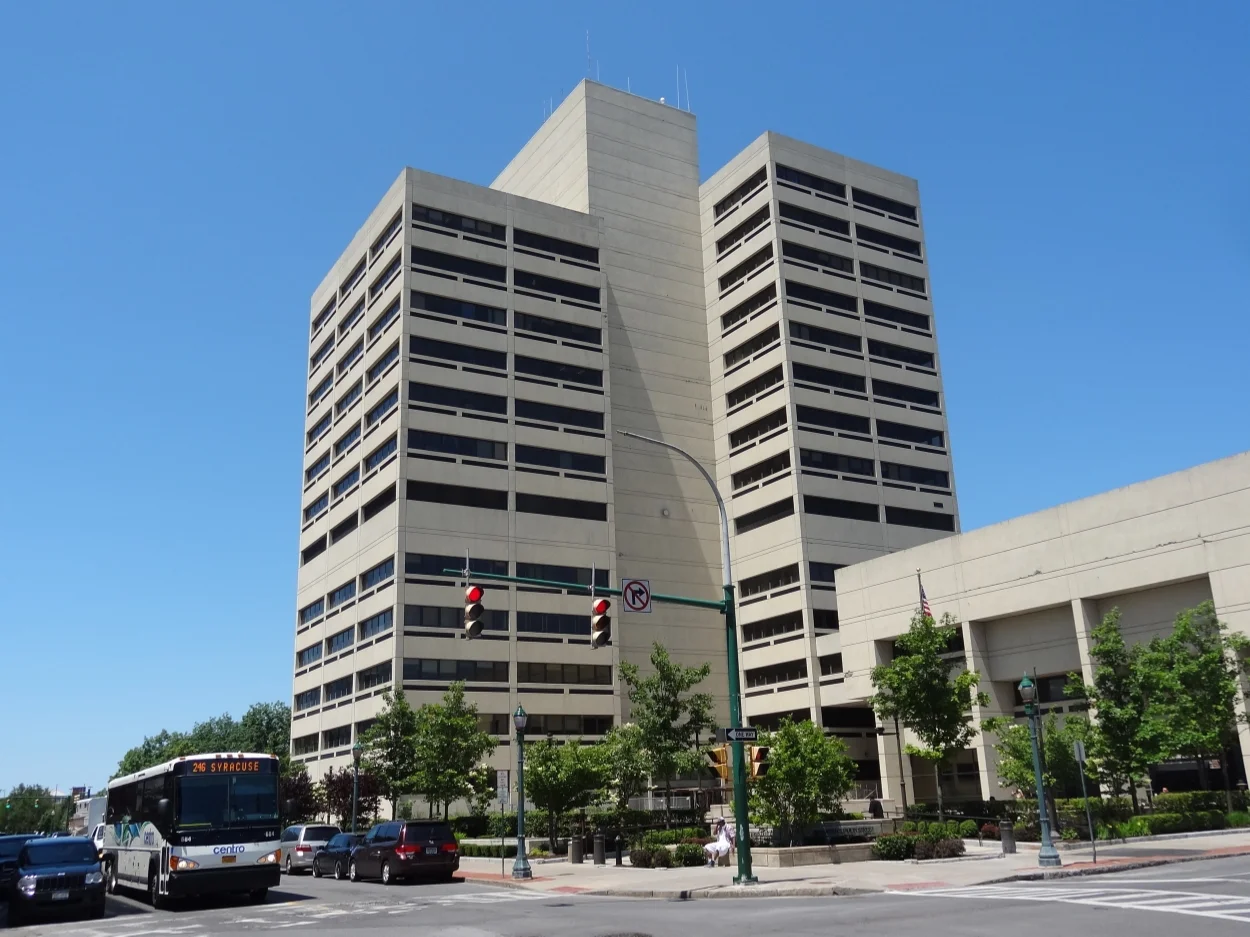

Hanley Federal Building - US General Services Administration
The 14-story and courthouse annex Hanley Federal Building was constructed in 1974. The concrete façade started to spall creating a potential hazard to pedestrians.
As a consultant to NK Bhandari, Bell & Spina conducted an initial visual inspection of the façade close-up and using scopes from surrounding buildings. Noting several areas of concern it was recommended that protection be installed to protect pedestrians from falling debris. Close-up inspection of all surfaces was then contracted using rope access technicians. Field investigations and analysis of the original construction details revealed “thin cover” to the reinforcing steel leading to systemic sub-surface corrosion and building wide cracking and spalling of the concrete façade.
Winding Ridge Apartments - Syracuse University
The redesign of the residential complex was to address several issues including water infiltration, aesthetics to the aging exterior, long life-span with minimal upkeep and the need to keep birds and bees from nesting.
